WPC pergola is aslo made of wood plastic composite materials. The Surface of WPC Pergola is smooth,It seems to give a sense of artistic beauty.Here we have some pictures to teach you how to install wpc pergola.

WPC Pergola stands for people rest and Enjoy the scenery, Pergola aslo  create conditions for climbing vines.Therefore, it can be said that the WPC Pergola is the closest to the natural garden landscape sketch.

Plastic wood has the advantages of good durability, safety and reliability, ecological environmental protection, convenient construction, low engineering cost, etc., and the plastic wood has good exterior decoration performance, and the service life of plastic wood is 4-5 times that of ordinary wood. It also has the waterproofing and anticorrosion performance of anticorrosive wood, which is more suitable for use in garden facilities, so it is a very good choice to use plastic wood to build grape frame.

How to install wood plastic composite outdoor Pergola ?

Installation materials: wood plastic materials (Post, beams, blades), steel Metal base, galvanized square tube, expansion bolts, screws, connectors, etc.

Before installation the WPC pergola, must be in accordance with the pre-design requirements and site construction conditions to draw drawings and do a good job of installation planning steps.

Before performing the installation steps, ensure that the concrete base is smooth and the thickness can meet the installation and construction requirements.

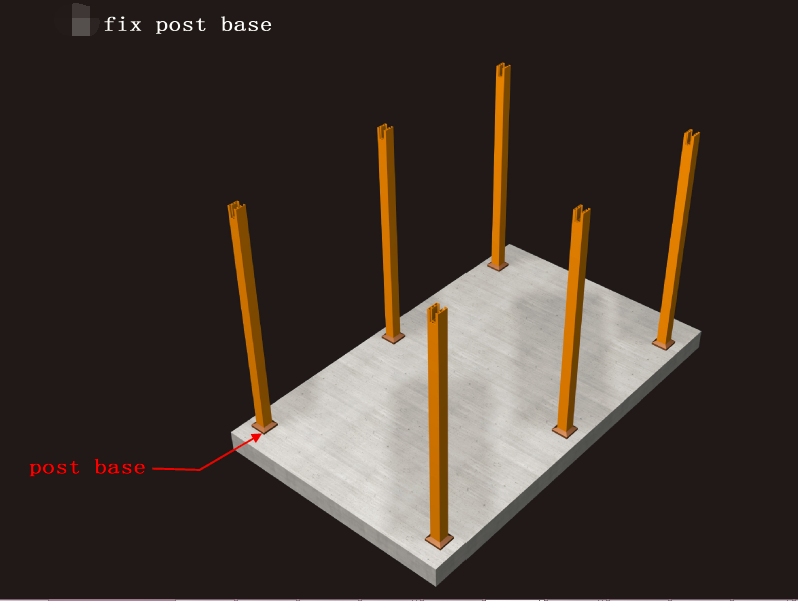

1: Fix WPC post base

Fix the Post base  to concrete with expansion screws,and insert
into the post skirt.

When make the steel post base, the thickness of the steel plate of the base shall be ≥5mm, and the welded galvanized steel tube wall shall be ≥1.5mm.

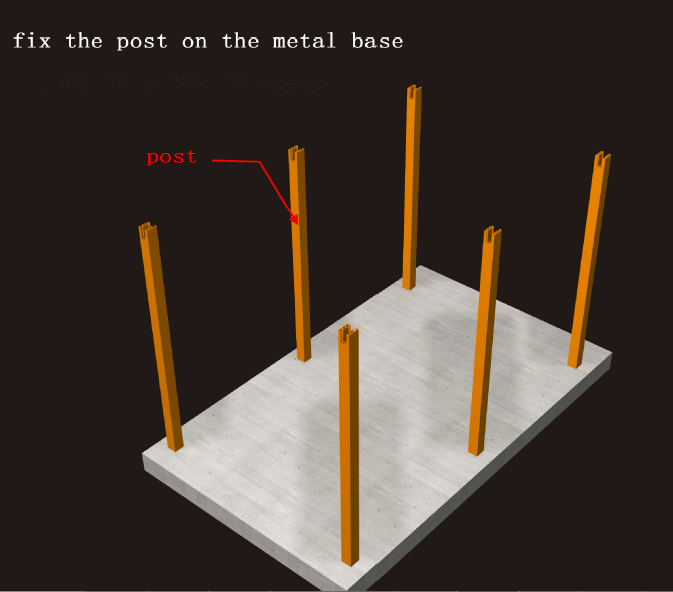

2: Fix the post on the metal base

When installing the wood plastic post, all the posts on the same straight line must meet the design span requirements.

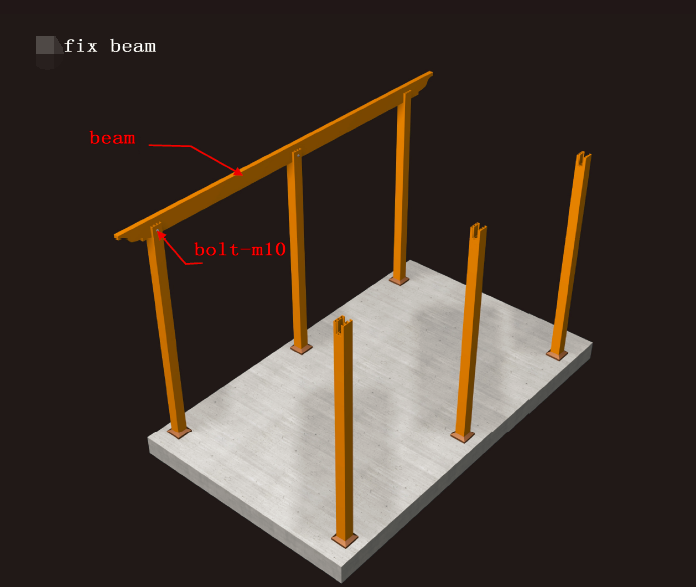

3: Fix WPC Beam

Insert the 200 * 80mm or 180*80mm Crossbeam into the slotted post and adjust the
length before and after.

A steel tube should be inserted into all the beams of the WPC Pergola. The diameter of the steel tube is slightly smaller 1-2mm than the empty size of the WPC beam.After fixing the WPC beam, connect the galvanized tube to the wpc beam with 2 stainless steel drill screw where the Place on the beam is not noticeable.

Use Φ10mm twist drill to make a pair of perforations,fix the post and  Crossbeam with M10 * 220mm stainless steel screw.

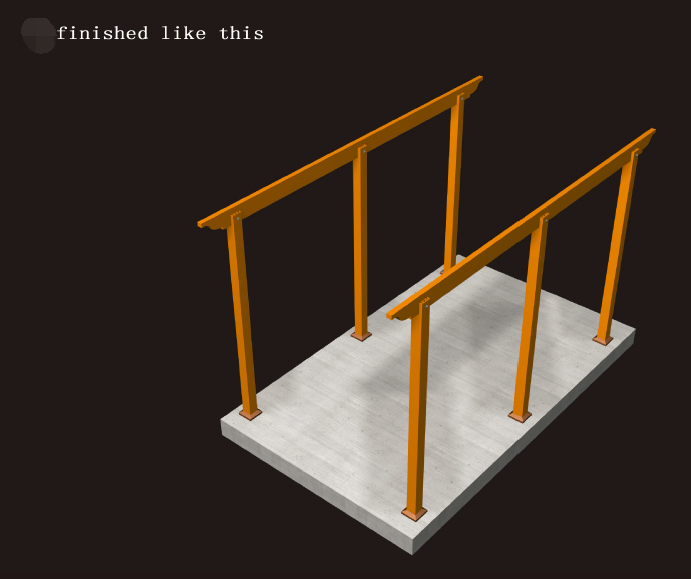

4: Finished like this

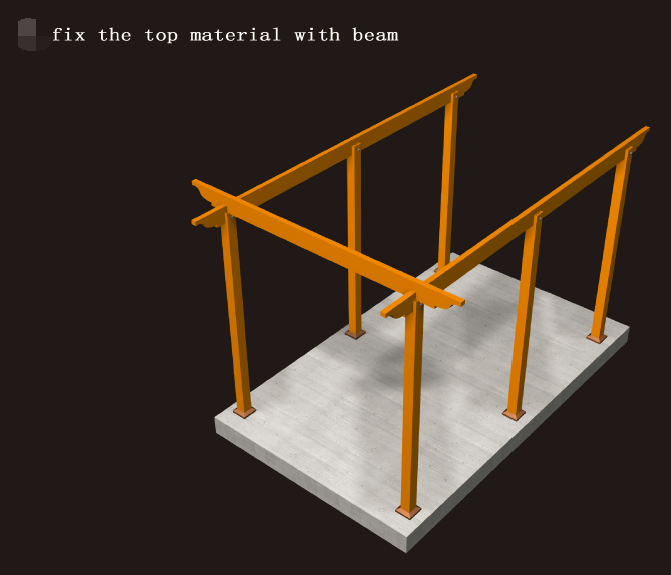

5:Fix the top material with beam

The horizontal span of the Pergola determines the length of the wpc blade Above the Pergola.

The length of the WPC blade should be 100-250mm longer than each end of the transverse span between Posts.When the blade span of WPC Pergola  is ≤2 meters, the blade can be fixed directly on the beam of Pergola.

When the blade span of Pergola is >2 meters , galvanized tube shall be inserted inside the wpc  blade to prevent the wpc  blade from sagging and deformation;

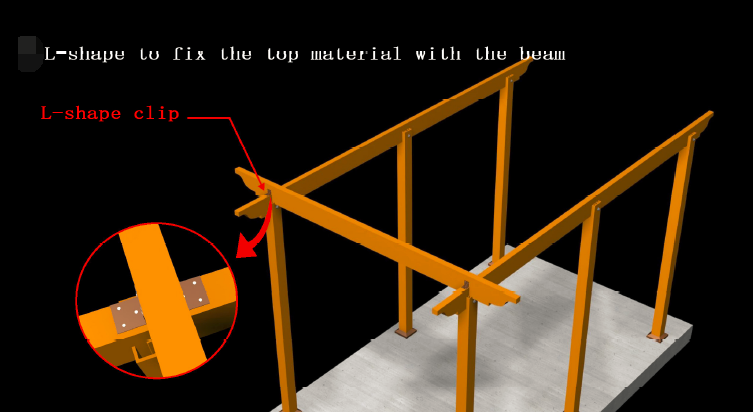

6: L-shape clip to fix the top material with the beam

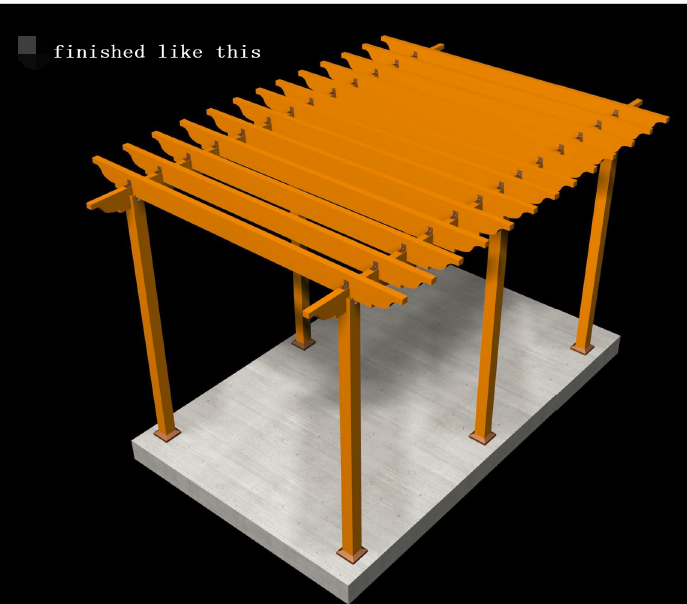

7: Finished like this

The installation  of the WPC Pergola is relatively simple, because the wood plastic material has its own characteristics, so it does not need very complex installation and construction technology.However, the wrong installation and construction method will inevitably lead to the overall structure of the wpc pergola is unstable, and the appearance loses the aesthetic feeling.Therefore, in the wood – plastic Pergola installation, to choose as far as possible have rich installation experience, more professional wood – plastic material construction personnel to complete the installation.
